Throughout the years Falgayras Company has developed a wide range of flight indicators.
Thanks to our expertise we are ready to accompany you in the realization of airborne instruments adapted to your needs, whatever they may be !

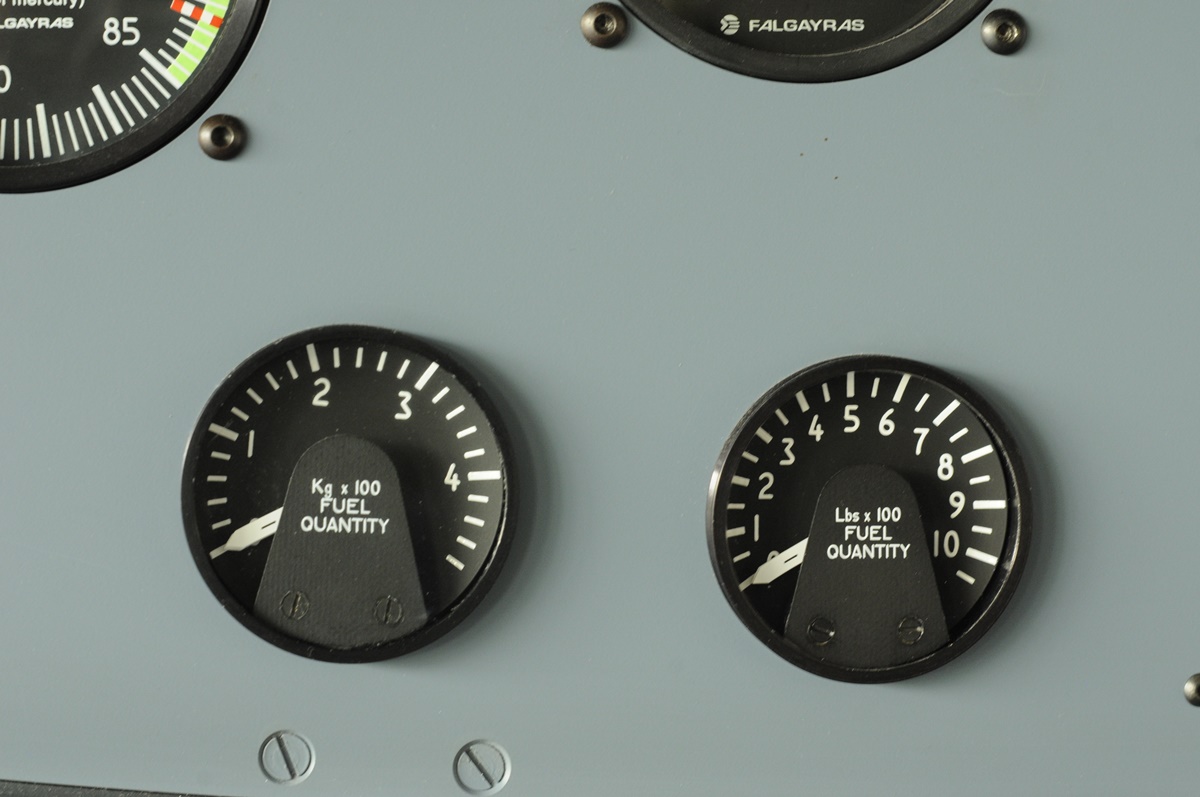

Fuel Quantity Indicator – FQ0202
It indicates the quantity of fuel in each tank of the aeroplane: Indication by magneto-electrical galvanometer double needle 240°.
Integrated lighting 28 volts bluish white, operates in extreme temperatures, from -50°C to +70°C ; available in different units : Kg, Lbs, Litres or gallons.

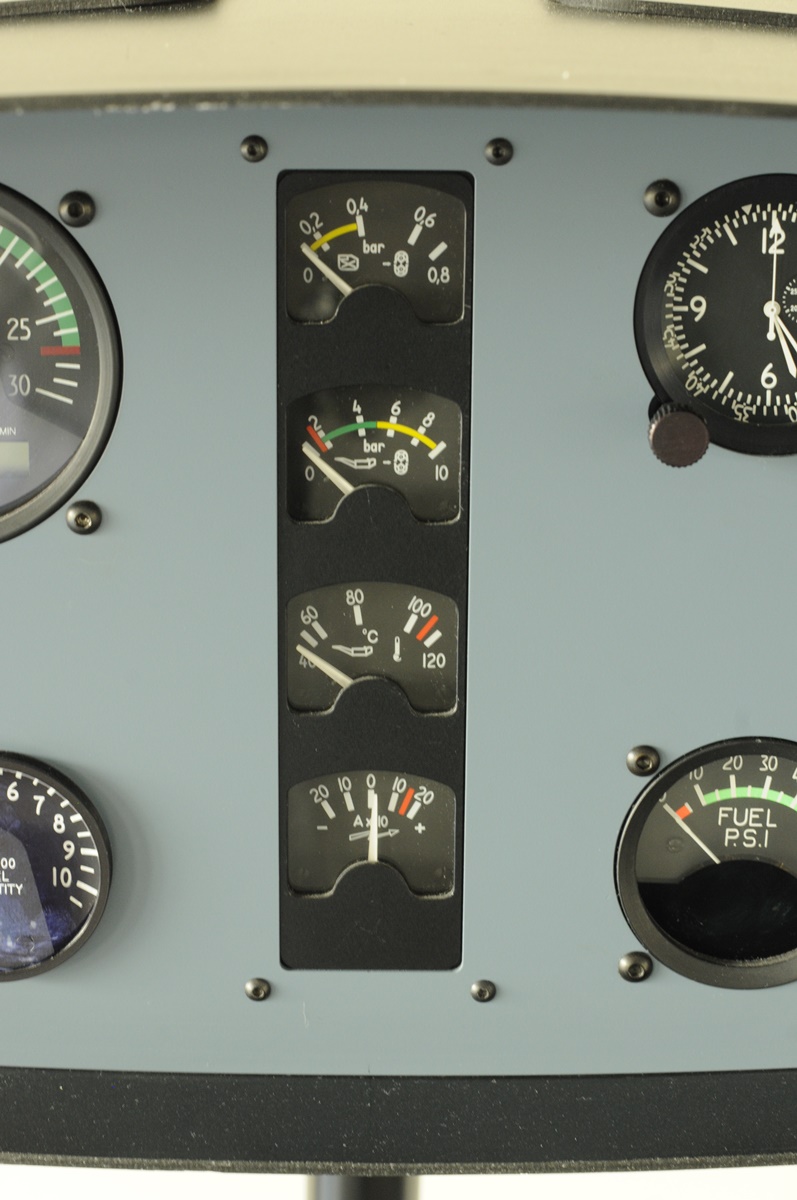

4 informations indicator – IQ9709
Operating with 28 Vdc, it includes: a fuel pressure indicator (0 to 800mb), a lubricant pressure indicator (0 to 70 bars), a lubricant temperature indicator (40 to 120°C) and a battery trim indicator (-20 to +20 Amperes).
The lighting is bluish white 28 Vdc and the electric interface by FASTON lugs 6.35 and terminals diameter M4.
NR Rotor Indicator – NR9902
Through (he intermediary of a sensor on phonic wheel, it measures the rotation speed of an helicopter’s main rotor.
The tension delivered by the sensor supplies the indicator which is consequently autonomous; it is possible to supply the indicator from the AC. power on plane 28 Vdc.
The Internal lighting in accordance with the norm OOAS1821 (bluish white) and the Measuring range from 100 to 450 RPM.

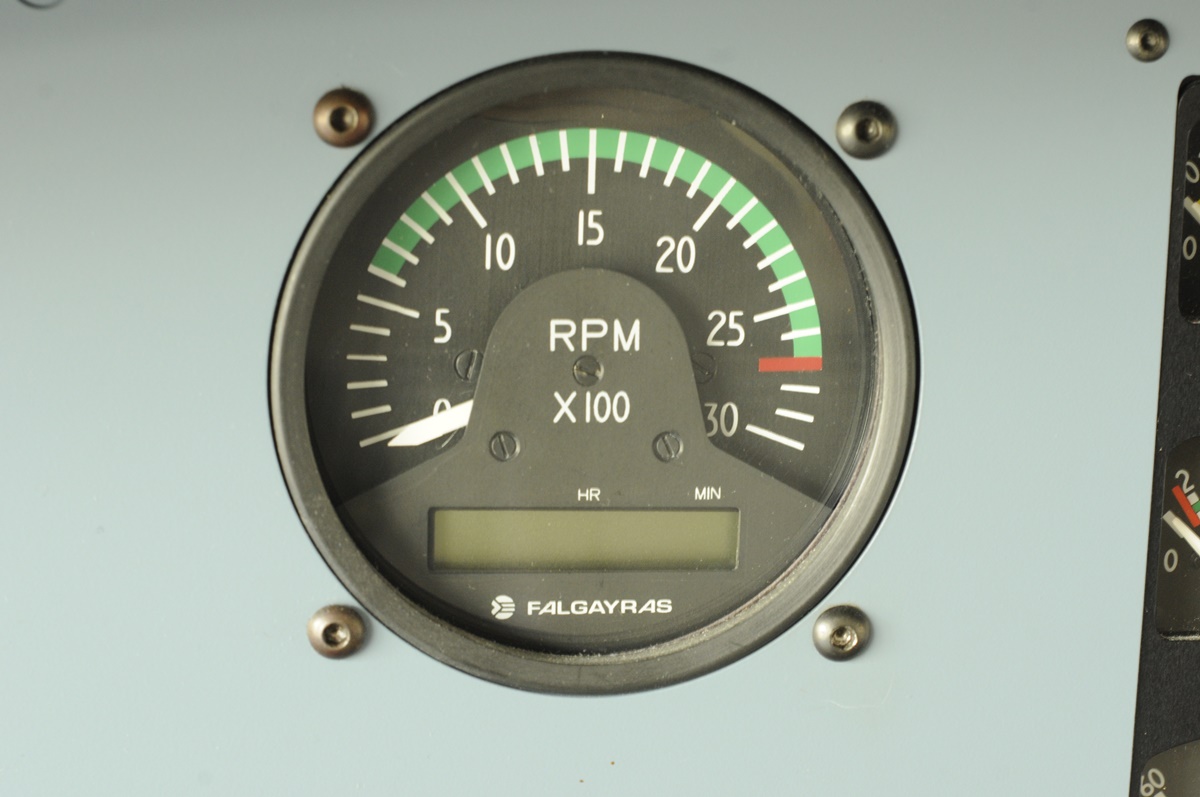

Tachometer – TA2004
Through the intermediary of a sensor on phonic wheel, it measures the rotation speed of an aeroplane’s motor.
The indicator is supplied from the aircraft power (10/32 vdc).
The internal lighting 28 Vdc in accordance with the norm OOAS1821 (bluish white) and the measuring range is from 0 to 3000 RPM.
Voltmeter – VT9904
Amperemeter – AM9905
